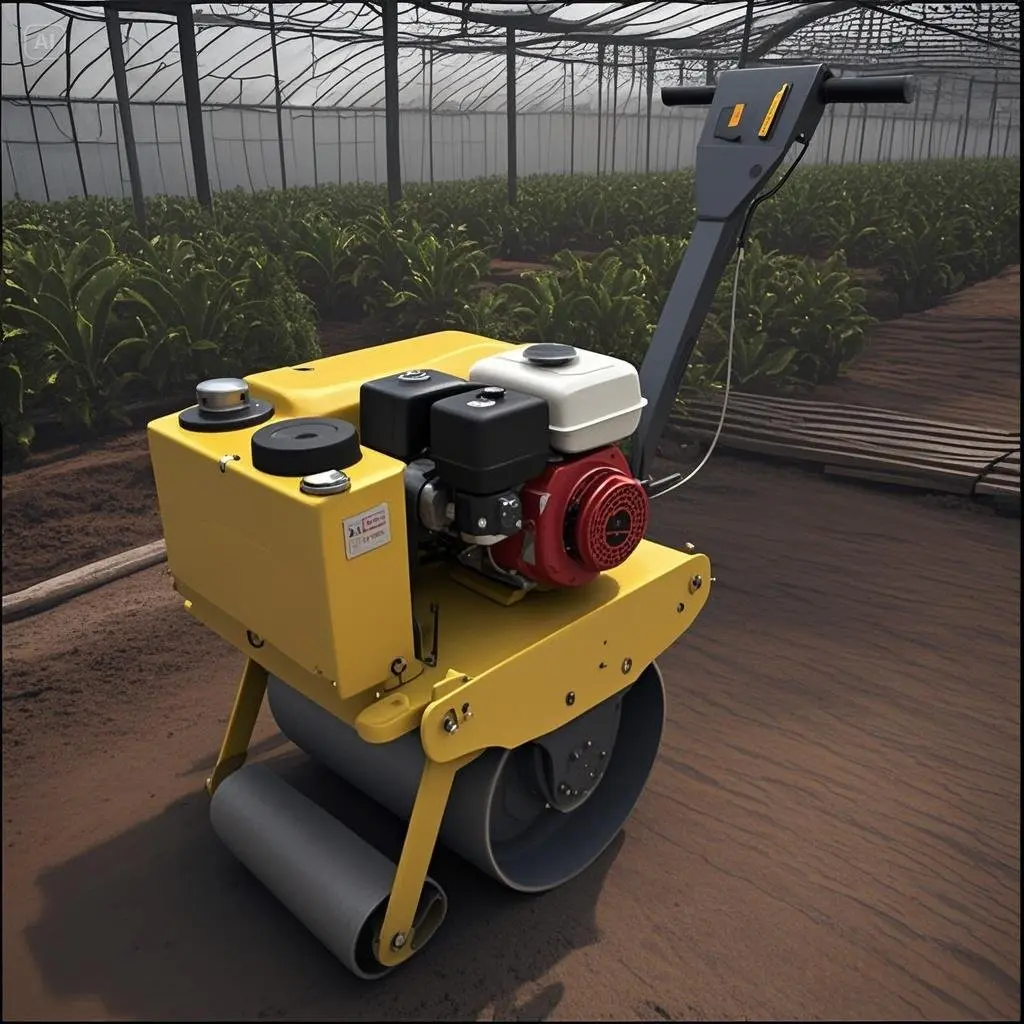

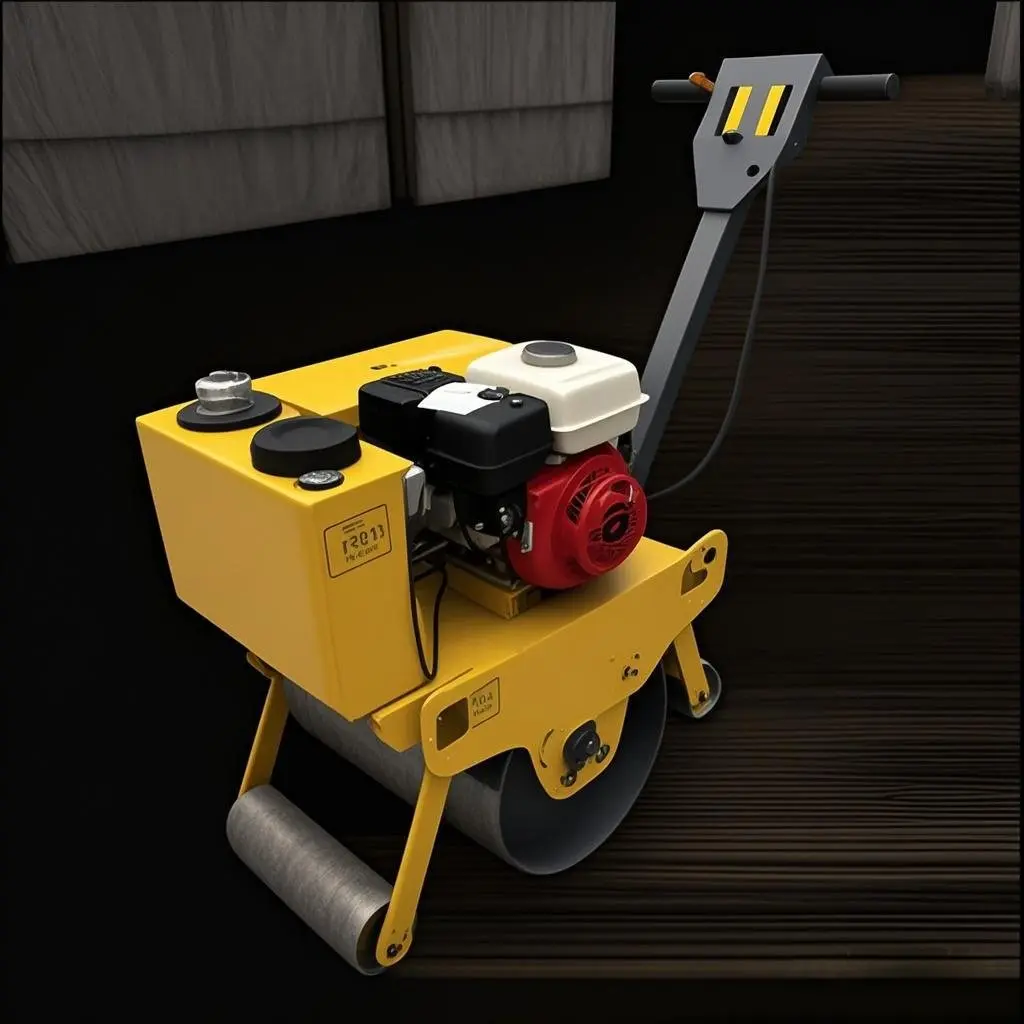

450kgWalk-Behind Single Drum Vibratory Roller SN-450
The SN-450 walk-behind single-drum vibratory roller is compact, versatile, and easy to operate, providing 2,600 pounds of compaction force. It is equipped with a reliable Honda GX390 gasoline engine (electric start), a variable piston pump, continuously variable speed, and hydraulically controlled one-button vibration. It is an ideal equipment for highway maintenance, asphalt repairs, driveways, small parking lots, trails, landscaping, and sidewalks.
product details
Additional Specs
Operating weight
280kg
Total length (armrests laid flat)
1650mm
Total width
590mm
Total height (armrests erected)
1350mm
Vibration form
Automatic vibration-- Centrifugal clutch
Engine optional (National II/National IV/EPA/Euro V)
Honda 160/Briggs & Stratton 5HP Other engines can be consulted separately
Convenience and safety of operation
Efficient single-person operation: The handle integrates the throttle, vibration switch and emergency stop button, so the operator can control it with one hand while walking and following, reducing physical exertion.
Real-time adjustment of compaction path: The operator can observe the contact status between the steel wheel and the material at close range, and adjust the walking route or vibration mode in time to avoid pressure leakage or material displacement.
Emergency brake protection: The design of stopping when releasing the hand (centrifugal clutch or brake system) quickly cuts off the power in an emergency to reduce the risk of accidents.
Maneuverability and scene adaptability
Narrow space operation: The width of the machine body is usually only 60cm, which can easily enter narrow areas (such as pipeline trenches, the inside of curbstones, and basement passages), filling the compaction blind spots that large equipment cannot cover.
Quick transition: The weight of the whole machine is moderate, and the handle can be removed or folded to be transported by small trucks, pickup trucks, or even manpower, which is suitable for contractors who frequently transfer to multiple construction sites.
Terrain adaptability: The steel wheel has a large diameter and can cross small obstacles (such as stones and gaps) and adapt to slightly uneven ground.
